Uploading a source

BlueDolphin sources represent the bit of informations that are originating from external resources, they can be imagined as separate containers or tables of data that can be further used to create and enrich objects, relationships.

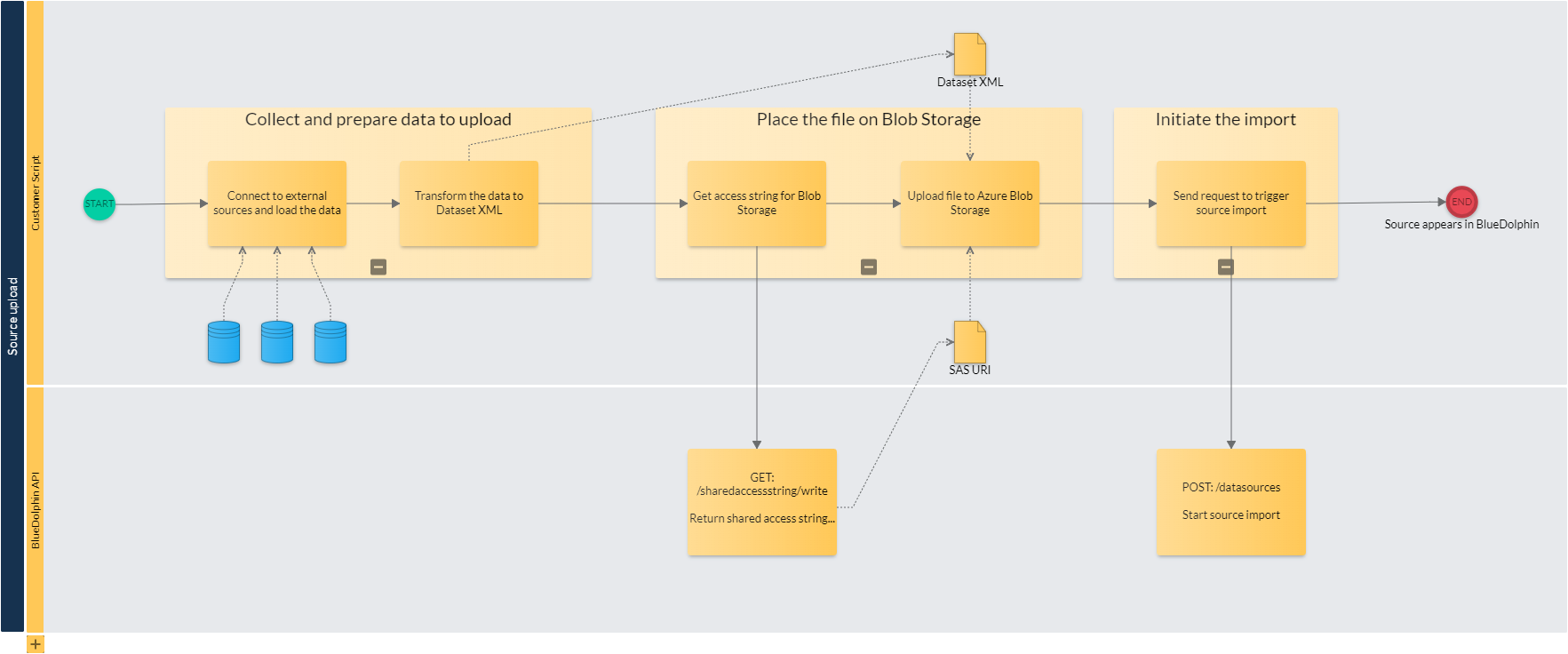

Overview of uploading a source:

  1. Collecting and preparing the data to upload.

  2. Placing the file on Blob Storage with File Sharing API.

  3. Initiating the import with Sources API.

Uploading a source

Follow the steps in this article to upload a new source into your BlueDolphin environment using the API.

Prerequisites

To start using BlueDolphin APIs to create integrations, you need to have:

  • BlueDolphin environment,

  • Set up an API key to use in this example in your BlueDolphin environment.

Step 1: Prepare the file to upload

To create a new source in BlueDolphin, you'll have to connect to your external data sources to collect all the data that you need and transform in the required Dataset XML format.

  1. Connect to your source and load the data

  2. Transform the data in Dataset XML format

It is important to also write the schema to file, not only the Dataset content.

Sample file

The content of the Applications.xml file:

<?xml version="1.0" standalone="yes"?>
<NewDataSet>
    <xs:schema id="NewDataSet" xmlns="" xmlns:xs="http://www.w3.org/2001/XMLSchema" xmlns:msdata="urn:schemas-microsoft-com:xml-msdata">
        <xs:element name="NewDataSet" msdata:IsDataSet="true" msdata:MainDataTable="ApplicationsDataTable" msdata:UseCurrentLocale="true">
            <xs:complexType>
                <xs:choice minOccurs="0" maxOccurs="unbounded">
                    <xs:element name="ApplicationsDataTable">
                        <xs:complexType>
                            <xs:sequence>
                                <xs:element name="Application_ID" type="xs:string" minOccurs="0" />
                                <xs:element name="Name" type="xs:string" minOccurs="0" />
                                <xs:element name="Version" type="xs:string" minOccurs="0" />
                                <xs:element name="Vendor" type="xs:string" minOccurs="0" />
                                <xs:element name="Category" type="xs:string" minOccurs="0" />
                             </xs:sequence>
                        </xs:complexType>
                    </xs:element>
                </xs:choice>
            </xs:complexType>
        </xs:element>
    </xs:schema>
    <ApplicationsDataTable>
        <Application_ID>5npOMiLzKK</Application_ID>
        <Name>Google Chrome</Name>
        <Version>97.0.4692</Version>
        <Vendor>Google Inc.</Vendor>
        <Category>Browsers</Category>
    </ApplicationsDataTable>
    <ApplicationsDataTable>
        <Application_ID>ugumq9vKF2</Application_ID>
        <Name>Mozilla Firefox</Name>
        <Version>96.0.1</Version>
        <Vendor>Mozilla</Vendor>
        <Category>Browsers</Category>
    </ApplicationsDataTable>
    <ApplicationsDataTable>
        <Application_ID>yXmx2D5F17</Application_ID>
        <Name>Notepad++</Name>
        <Version>8.2</Version>
        <Vendor>Notepad++ Team</Vendor>
        <Category>Code editor</Category>
    </ApplicationsDataTable>
    <ApplicationsDataTable>
        <Application_ID>rfAh8ttZ5H</Application_ID>
        <Name>VLC media player</Name>
        <Version>3.0.16</Version>
        <Vendor>VideoLAN</Vendor>
        <Category>Media player</Category>
    </ApplicationsDataTable>
    <ApplicationsDataTable>
        <Application_ID>xvqVA5OoWj</Application_ID>
        <Name>Visual Studio Code</Name>
        <Version>1.63.2</Version>
        <Vendor>Microsoft</Vendor>
        <Category>Code editor</Category>
    </ApplicationsDataTable>
</NewDataSet>

Step 2: Upload the file with File Sharing API

BlueDolphin uses Azure Blob Storage for exchanging large amount of information. Each tenant has a dedicated storage space. So the data for the source has to be uploaded to blob storage.

In order to upload you'll need to get a write shared access signature token (SAS) to the storage container. You can request this with the File sharing API. After you have the URI you can place the file in the container.


1. Retrieve a write access string.
$ curl -X GET "https://{base}/api/v1/sharedaccessstring/write" \
-H "apiKey: f08a2bb9-3ab4-451a-9099-2ef531375147" \
-H "tenant: contoso"

The returned data is a SAS URI, the URI follows this structure: https://{blob_base}/{container}?{credentials}.

This is pointing to the tenant's storage container and allows you to upload any file. The link expires within 4 hours.

{
    "error_code": 0,
    "error_message": null,
    "error_message_explain": null,
    "data": "https://bddatastorageprd.blob.core.windows.net/97e78613-795e-4fc3-9cb1-d8ce344ea6ab?sv=2018-03-28&sr=c&sig=HsfuH%2B8Iqz2iN1tklQW7H5TVwEQuFr9mpZL9nn60d4M%3D&se=2022-01-17T13%3A30%3A05Z&sp=w"
}

2. Modify the URI, add the name of the file after the container section
https://{blob_base}/{container}/{filename}?{credentials}

The resulting URI:

https://bddatastorageprd.blob.core.windows.net/97e78613-795e-4fc3-9cb1-d8ce344ea6ab/Applications.xml?sv=2018-03-28&sr=c&sig=HsfuH%2B8Iqz2iN1tklQW7H5TVwEQuFr9mpZL9nn60d4M%3D&se=2022-01-17T13%3A30%3A05Z&sp=w
3. Upload the file using the new URI
$ curl -X PUT "https://bddatastorageprd.blob.core.windows.net/97e78613-795e-4fc3-9cb1-d8ce344ea6ab/Applications.xml?sv=2018-03-28&sr=c&sig=HsfuH%2B8Iqz2iN1tklQW7H5TVwEQuFr9mpZL9nn60d4M%3D&se=2022-01-17T13%3A30%3A05Z&sp=w" \
-H "x-ms-blob-type: BlockBlob" \
-H "Content-Type: application/xml" \
--data-binary "@Applications.xml"

This request is using Azure Storage API, more on Put Blob operation.

Step 3: Initiate the import

After the file was placed on the storage, you can send a request to BlueDolphin Sources API to initiate the processing.

1. Prepare the parameters
{
    "blobFileName": "<file-name>",
    "collectionName": "<collection-name>",
    "indexedFields": "<indexed-fields>"
}

Replace:

  • <file-name> with the name that was used at the file upload, ex. "Applications.xml".

  • <collection-name> with the name that identifies this external source in BlueDolphin, ex. "Source_Applications".

  • <indexed-fields> with the name of the column that represents the unique identifier/primary key, in case of compound keys it can be a comma separated list of columns.

2. Send request to start the import.
$ curl -X POST "https://{base}/api/v1/datasources" \
-H "apiKey: f08a2bb9-3ab4-451a-9099-2ef531375147" \
-H "tenant: contoso"
-H "Content-Type: application/json"
--data-raw '{
   "blobFileName": "sourceFile.xml",
   "collectionName": "Source_Applications",
   "indexedFields": "Application_ID"
}'

You should receive a response similar to the following, indicating that the request was received and the import is running in the background:

{
    "error_code": 0,
    "error_message": null,
    "error_message_explain": null,
    "data": true
}

After the import is processed the file will be removed from Blob Storage.

Check the result

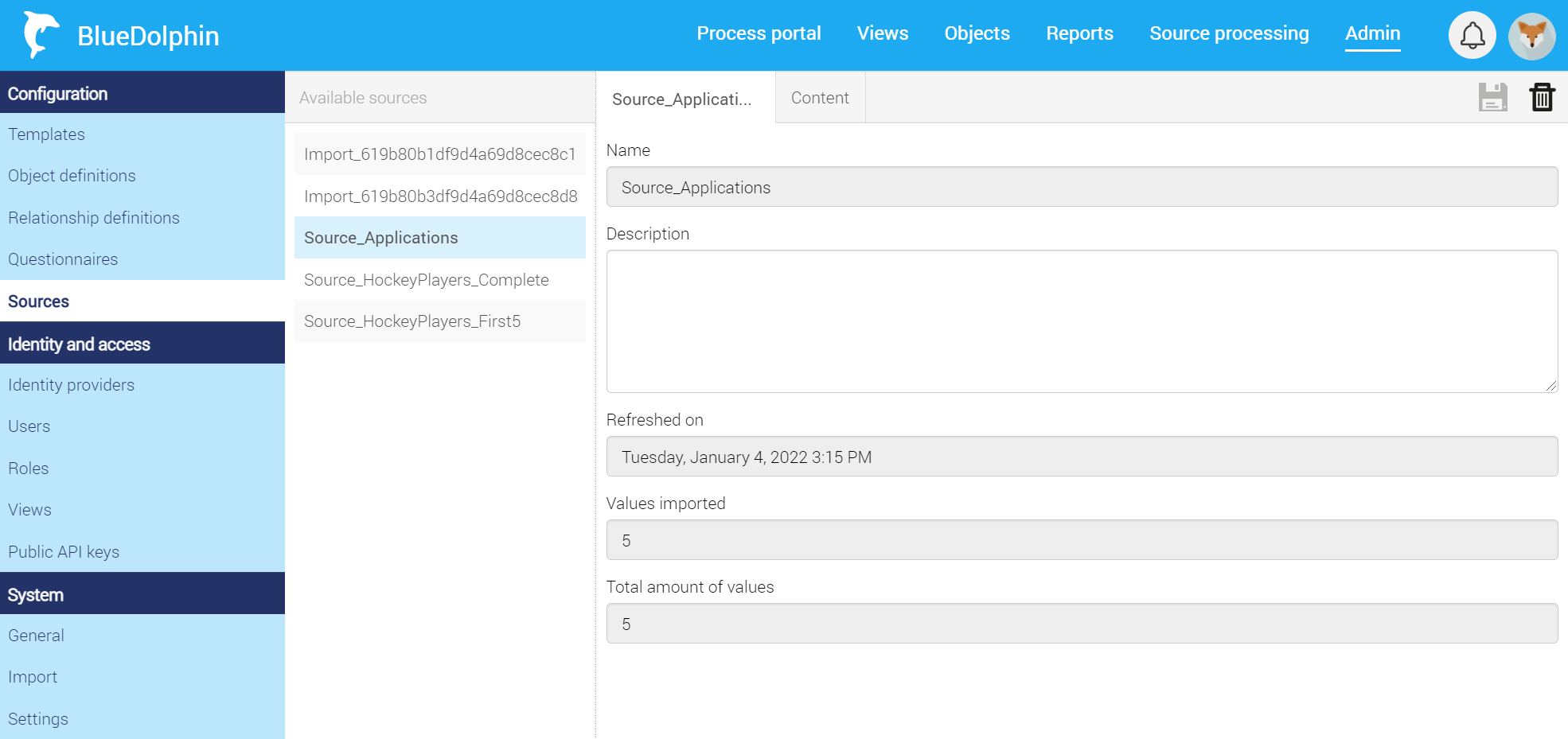

The newly uploaded source should appear in BlueDolphin Admin > Sources


Or it is also available in the list of all sources that can be retrieved with Sources API.
